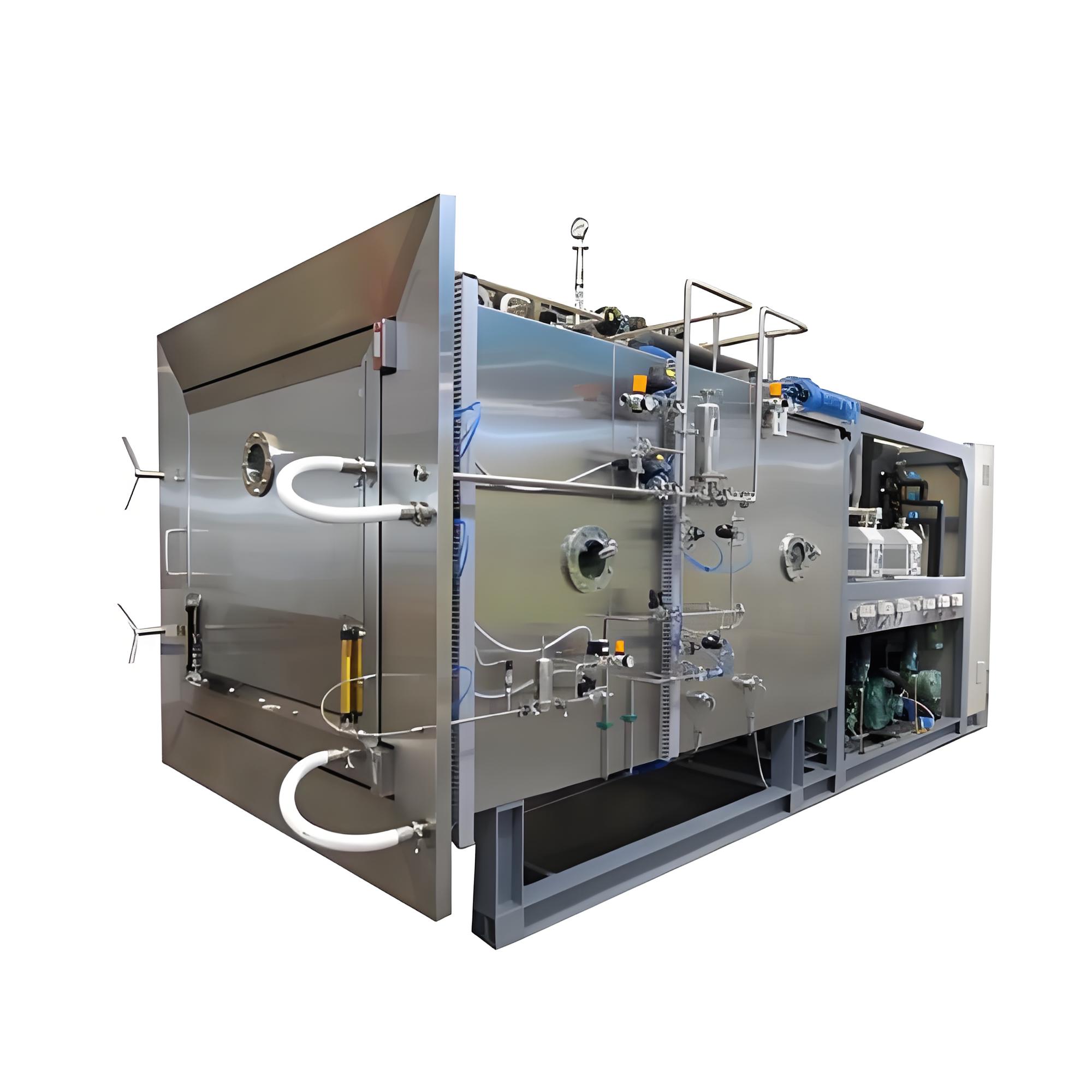

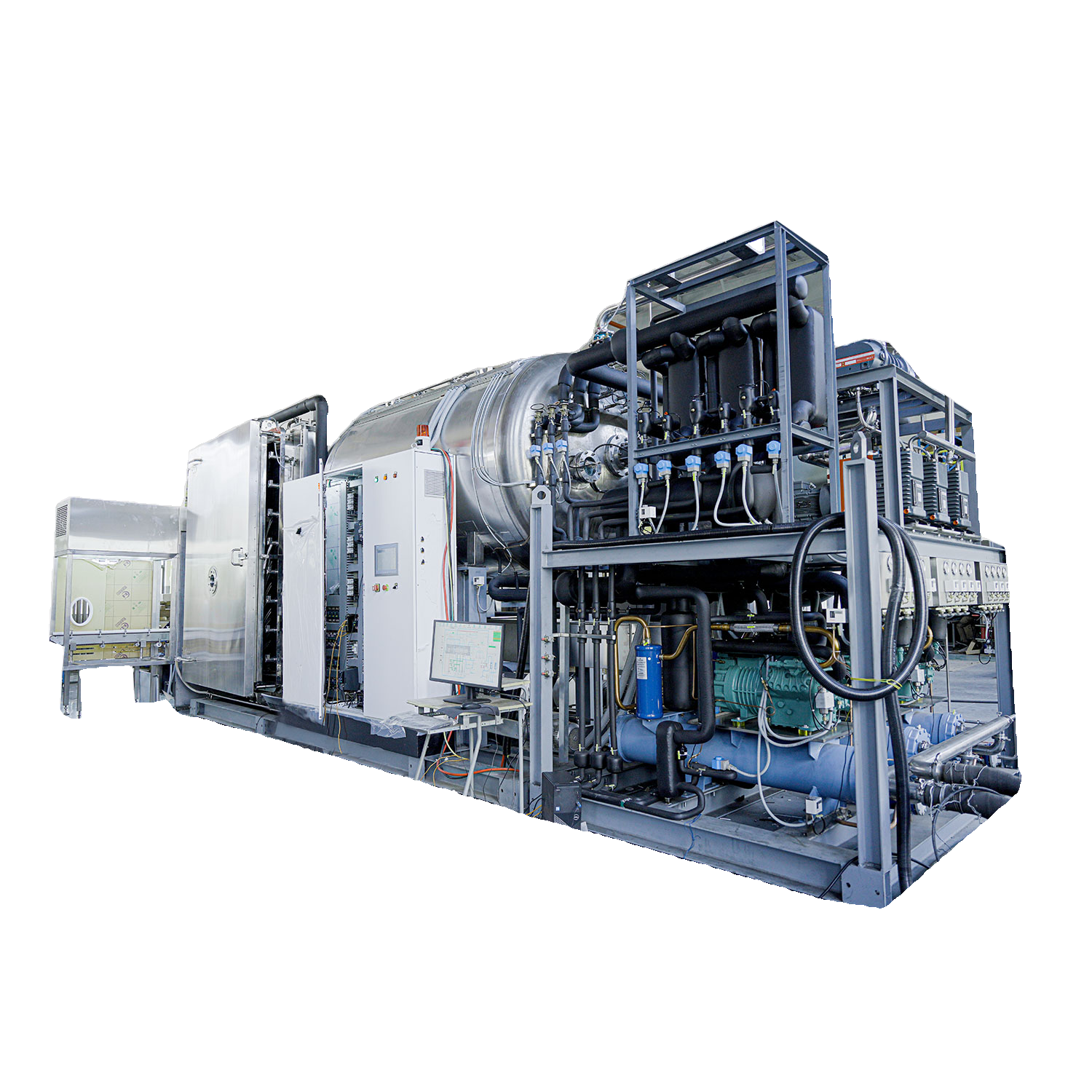

LYOMAC TECHNOLOGY LTD Industrial Scale Freeze dryer
The industrial model freeze dryer with drying capacity up to 1,000 Liters, cover most demand for vial or other material commercial production, compliance with cGMP and FDA, More optional systems available, main features are:
◆ Automatic shelf stoppering under vacuum
◆ Automactic control for freeze drying, SlP and CIP
◆ Scada control system compliance with GAMP regulation and save up to thousand recipes
◆ Shelf flatness less than 1.0mm, temperature uniformity less than 1℃
◆ Energy saving control system by control compressor and vacuum pump
◆ Environment friendly refrigerant
◆ Flexible arrangement design, suit user's plant layout, thus space saved
Product features:
Compact design, easy operation and maintenance, capable of achieving
functions such ascompression and sterilization, eutectic point testing, and
intuitive observation. The control system adopts a multi formula form, and the preproduction system can undergo self inspection testing, which
improves the safety and completeness of the production process and can meet the production requirements of different products.
Optional content
1. Eutectic point testing
2. Organic solvent recovery
3. Adjustable plate spacing device
4. Vacuum pressure plug (pressure adjustable)
5. Automatic moisture content determination function
6. In place cleaning and sterilization function
7. Mushroom/butterfly valve isolation device
8. Equal height feed
9. Automatic manual door lock mechanism
10. Vacuum regulating device for drying oven
11. Quality assurance documents IQ, OQ, PQ
1. Eutectic point testing
2. Organic solvent recovery
3. Adjustable plate spacing device
4. Vacuum pressure plug (pressure adjustable)
5. Automatic moisture content determination function
6. In place cleaning and sterilization function
7. Mushroom/butterfly valve isolation device
8. Equal height feed
9. Automatic manual door lock mechanism
10. Vacuum regulating device for drying oven
11. Quality assurance documents IQ, OQ, PQ
Specification List :
| Model | LYOPRO- 10.0 | LYOPRO- 13.0 | LYOPRO- 16.0 | LYOPRO- 20.0 | LYOPRO- 25.0 | LYOPRO- 30.0 | LYOPRO- 40.0 | LYOPRO- 50.0 |
Ice capacity(Kg) | 200 | 260 | 320 | 400 | 500 | 600 | 800 | 1000 |
| Shelf area(m2) | 9.72 | 12.96 | 15.84 | 19.80 | 24.75 | 30.00 | 42.00 | 49.50 |
| Shelf size(L*W)(mm) | 1200*900 | 1200*1200 | 1200*1200 | 1500*1200 | 1500*1500 | 2000*1500 | 2000*1500 | 2200*1500 |
| Useable Shelf No | 9 | 9 | 11 | 11 | 11 | 10 | 14 | 15 |
Vial loading quantity φ16/φ22 | 40000/ 20000 | 56000/ 28000 | 68000/ 34000 | 80000/ 40000 | 100000/ 50000 | 120000/ 60000 | 175000/ 85000 | 200000/ 100000 |
Inter. Shelf distance (mm) | 100 | 100 | 100 | 100 | 100 | 100 | 90 | 90 |
Shelf ultimate cooling temperature(oC) | -55 | -55 | -55 | -55 | -55 | -55 | -55 | -55 |
Condenser ultimate cooling temperature (oC) | -75 | -75 | -75 | -75 | -75 | -75 | -75 | -75 |
| Ultimate vacuum(Pa) | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
Installation dimension (L*W*H) | 6000*1750 *3800 | 6800*2000 *3800 | 6800*2000 *4200 | 7500*2000 *4200 | 7200*3000 *4200 | 7600*3000 *4200 | 7600*3200 *4500 | 9600*2300 *4700 |
| Weight(Kg) | 10000 | 12500 | 15000 | 17500 | 20000 | 25000 | 30000 | 35000 |
| Power(KW) | 63.0 | 77.5 | 91.5 | 120.0 | 135.0 | 147.0 | 179.0 | 215.0 |
